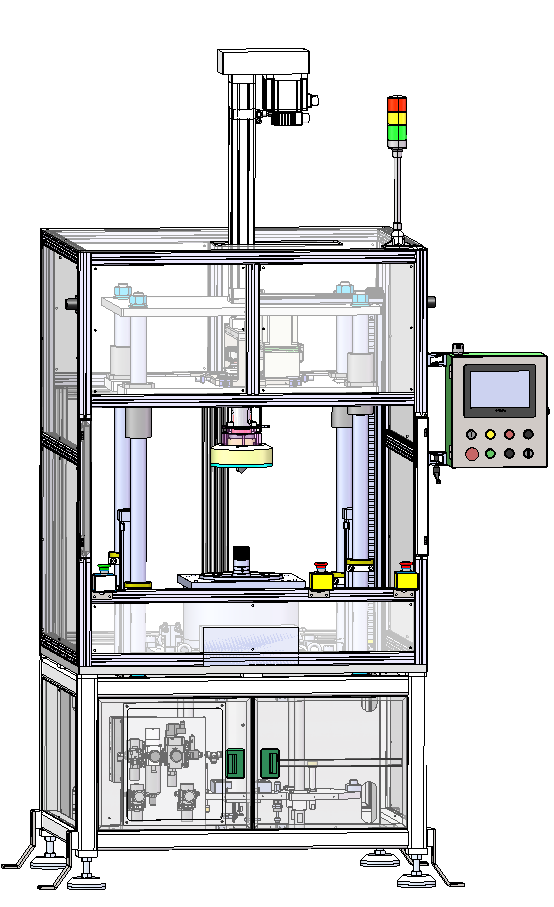

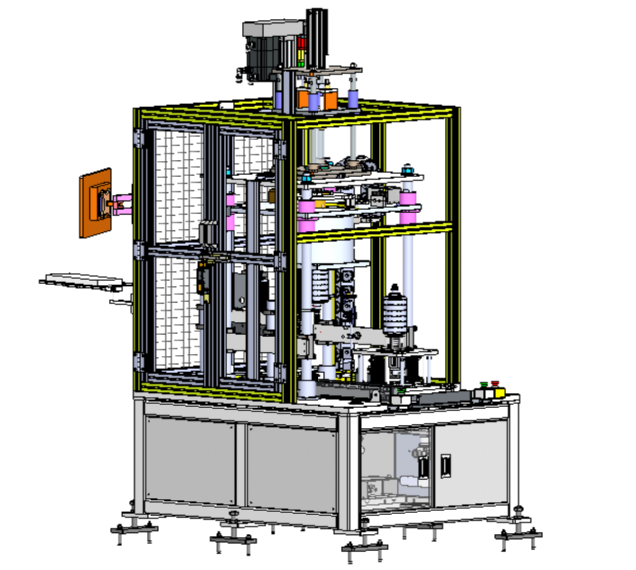

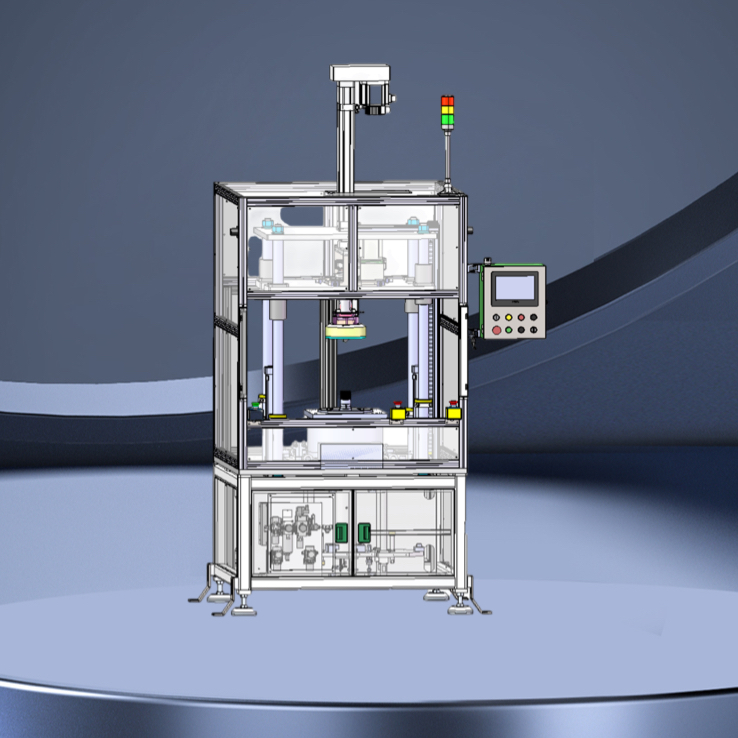

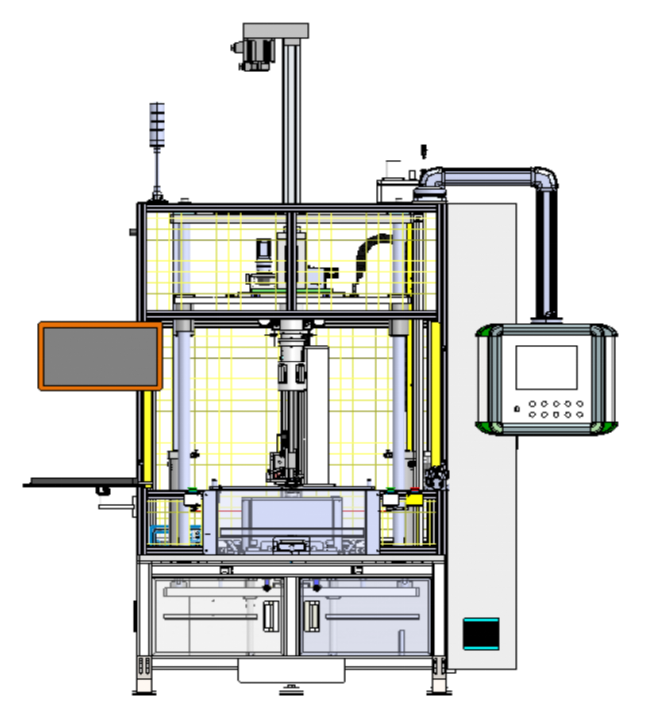

Including magnetizing equipment, magnetizing power supply, magnetizing coil, chiller, and magnetic flux meter (optional)
1. Wide compatibility range of rotor
2. Simple operation and high automation length
3. Equipped with anti misoperation measures
4. Convenient changeover+changeover car (optional)
5. Support dual-mode switching (manual+robot/robotic arm)
6. Communication with the magnetizing power supply, real-time monitoring of equipment status
7. It can embed magnetic flux detection and integrate magnetization and magnetic flux
project | Technical Specifications | Remarks |
input power | AC220V±5% 50/60Hz | |
input current | ＜ 20A | |
rated power | ＜ 5KW | |
Equipment noise | ≤ 75dB | Excluding instant magnetization |
beat | Equipment action ≤ 30s; coil cooling ≤ 60s | Excluding loading and unloading materials |
Device dimensions | Approximately 1100 × 1160 × 2350mm in length, width, and height | |
Size of electrical cabinet | Approximately 900 × 500 × 1700mm in length, width, and height | |
changeover time | ≤20min | Fixture+coil (quick plug) |
one | Environmental temperature: 0 ℃~40 ℃; |
two | Environmental humidity<80% (no condensation allowed); |
three | Factory height (column top height): 3.5m; |
four | Ground load:>2 tons/square meter; |
five | Dimensions of the transportation door for factory equipment: width 1500 x height 2500mm; |
six | Gas source: pressure 0.4-0.6Mpa, flow rate 0.3m 3/ min; |
seven | No dust, no oil fumes, no salt, no dripping water; |
eight | Avoid direct sunlight exposure; |
nine | No flammable or corrosive liquids or gases; |
ten | No impact or high-frequency vibration; |
eleven | Location of use: Workshop open environment. |
