1. Low power consumption, high efficiency, stable discharge continuous use for a long time.
2. The system adopts an automatic control mode and provides reserved ports, facilitating upgrading and transformation.
3. Multiple protection functions and alarm outputs are provided to ensure system safety.
4. Simple operation, precise monitoring via touchscreen.
5. The magnetizing voltage is adjustable from DC 200V to 2500V.
6. The capacitor power is automatically discharged when the device is shut down, power is cut off, or a fault occurs.

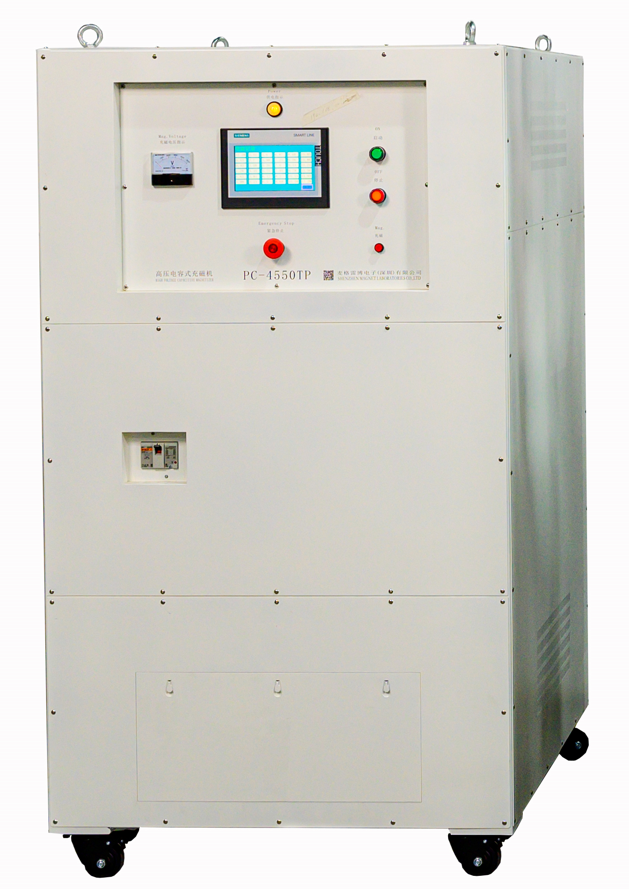

Items | PC-2520TP | PC-2530TP | PC-2540TP | PC-2550TP | Remarks |
input power | AC220V±10% 50Hz Single-phase two-wire | AC380V±10% 50Hz Two-phase three-wire | |||
Input current | Max 40A | Max 55A | Max 60A | ||
Rated power | Max 10KVA | Max 18KVA | Max 20KVA | ||
Charging voltage | 200～2500VDC ±0.2% @ full scale Repeatability error: ±1V @ 200～2500VDC | ||||
output power | Max 30KA | ||||
capacity | 2000uF | 3000uF | 4000uF | 5000uF | |
max output energy | 6250J | 9375J | 12500J | 12625J | |
Charging and discharging time | < 4S | < 6S | < 8S | < 10S | |
Communication interface | RS-485/Ethernet | ||||
Weight | Approximately 250kg | Approximately 320kg | Approximately 350kg | Approximately 380kg | |
The width, depth and height are approximately（mm） | 670*600*1525 | 900*800*1700 | |||
1 | Ambient temperature: 0℃~40℃ |
2 | Ambient humidity: < 80% (no condensation allowed) |
3 | Plant height (column top height): 2.5m |
4 | Floor load capacity: > 1 ton/m² |
5 | Dimensions of the plant's equipment transport door: 1500mm (width) × 2000mm (height) |
6 | Dust-free, oil fume-free, salt-free, and no dripping water |
7 | Avoid direct sunlight |
8 | No flammable or corrosive liquids or gases |
9 | No impact or high-frequency vibration |
10 | Installation location: open workshop environment |
