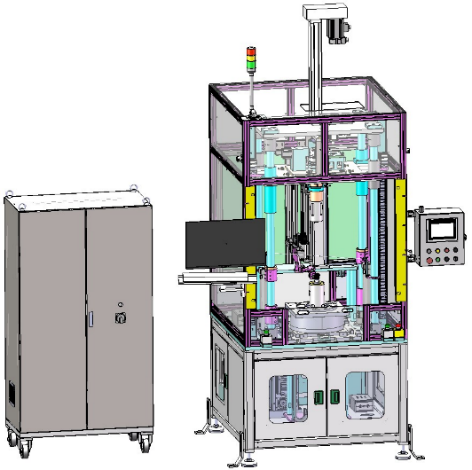

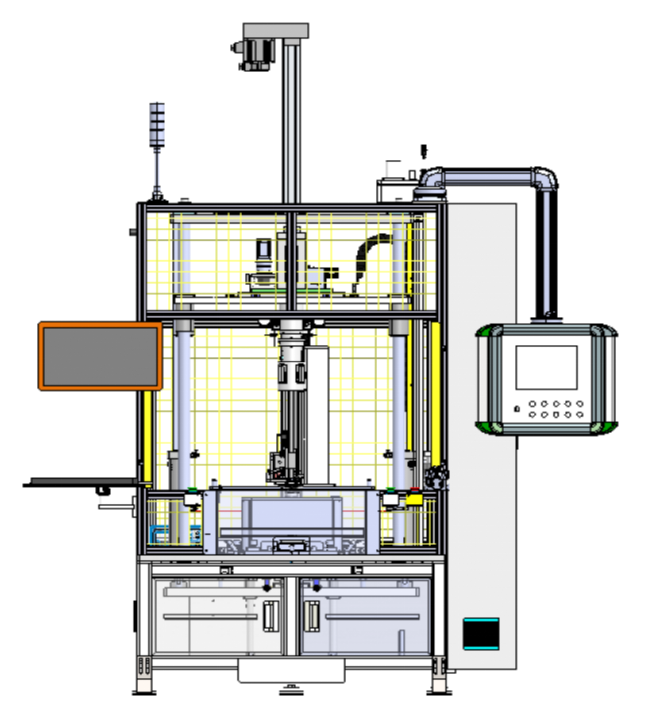

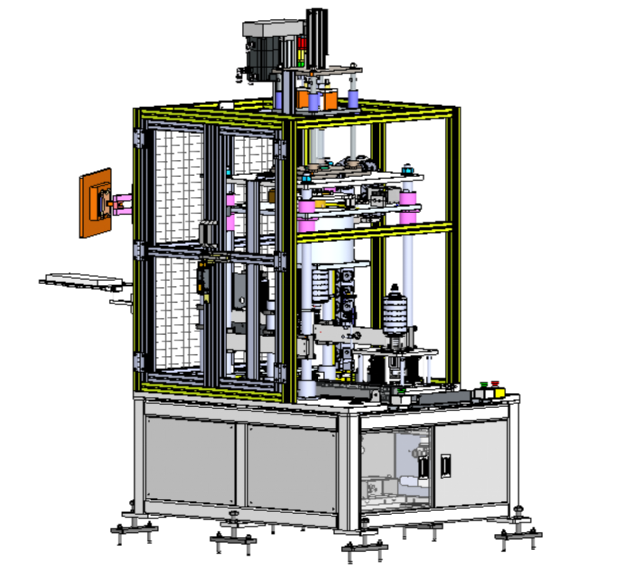

Including magnetizing equipment, magnetizing power supply, magnetizing coil, chiller, flux meter (optional), surface magnetic detection software, Gauss meter
1. Wide range of rotor compatibility
2. Simple operation, high automation length, and anti- misoperation function
3. Convenient model change + model change trolley (optional)
4. both manual loading and unloading and robot loading and unloading modes
5. The magnetization detection coil is fixed on the table
6. Communication with magnetizing power supply to monitor device status in real time
7. Can embed magnetic flux detection, magnetization + magnetic flux integrated into one
project | Technical Parameters | Remark |
Input Power | AC220V±5% 50/60Hz | |
Input Current | <20A | |
Rated Power | <5KW | |
Equipment noise | ≤75dB | Except for the moment of magnetization |
Device size | Machine length, width and height: 1100×1160×2350mm The length, width and height of the electric cabinet are about: 900×500×1600mm | |
Equipment weight | <1500kg | |
Changeover time | ≤30min | Tooling + coil |
1 | Ambient temperature: 0℃~40℃; |
2 | Ambient humidity < 80% (no condensation); |
3 | Plant height (column top height): 3.5m; |
4 | Ground load: >2 tons/㎡; |
5 | Factory equipment transportation door size: width 1500 × height 2500mm; |
6 | Gas source: air pressure 0.4～0.6Mpa, flow rate 0.3m 3 /min; |
7 | No dust, no oil smoke, no salt, no dripping water; |
8 | Avoid direct sunlight; |
9 | No flammable, corrosive liquids and gases; |
10 | No shock and high-frequency vibration; |
11 | Use location: Open workshop environment. |
