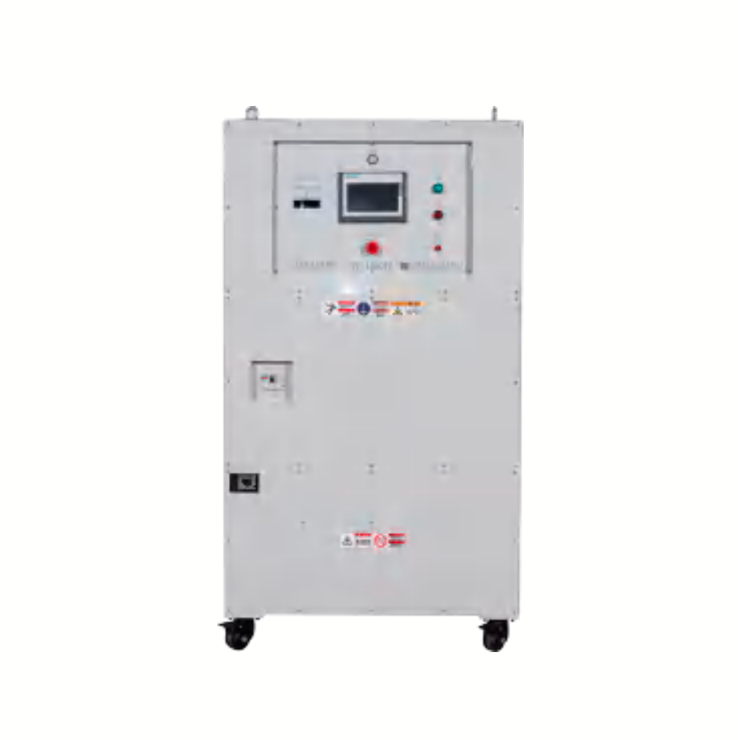

1. Low power consumption, high efficiency, stable discharge waveform, and capable of continuous use for a long time.
2. The system adopts an automatic control mode and provides reserved ports, facilitating upgrading and transformation.
3. Multiple protection functions and alarm outputs are provided to ensure system safety.
4. Simple operation, precise monitoring via touchscreen.
5. The magnetizing voltage is adjustable from DC 200V to 4500V.
6. The capacitor power is automatically discharged when the device is shut down, power is cut off, or a fault occurs.
items | PC-4540TP | PC-4550TP | PC-4560TP | PC-4580TP | Remark |
input power | AC380V±10% 50Hz Two-phase three-wire | ||||
Input current | Max 50A | Max 60A | |||
Rated power | Max 19KVA | Max 25KVA | |||
Charging voltage | 200-4500 VDC ±0.2% @ full scale Repeatability error: ±1 V @ 200-4500 VDC | ||||
output power | Max 25KA | ||||
capacity | 4000uF | 5000uF | 6000uF | 8000uF | |
max output energy | 40500J | 50625J | 60750J | 81000J | |
Charging and discharging time | <30S | <40S | |||
Appearance color | RAL7035 | Customized | |||
Communication interface | RS-485/Internet | ||||
Weight | Approximately 550KG | Approximately 630KG | Approximately 700KG | Approximately 850KG | |
The width, depth and height are approximately （mm） | 900*1100*1625mm | 1000*1440*1625mm | |||
1 | Ambient temperature: 0℃~40℃ |
2 | Ambient humidity: < 80% (no condensation allowed) |
3 | Plant height (column top height): 2.5m |
4 | Floor load capacity: > 1 ton/m² |
5 | Dimensions of the plant's equipment transport door: 1500mm (width) × 2000mm (height) |
6 | Dust-free, oil fume-free, salt-free, and no dripping water |
7 | Avoid direct sunlight |
8 | No flammable or corrosive liquids or gases |
9 | No impact or high-frequency vibration |
10 | Installation location: open workshop environment |
